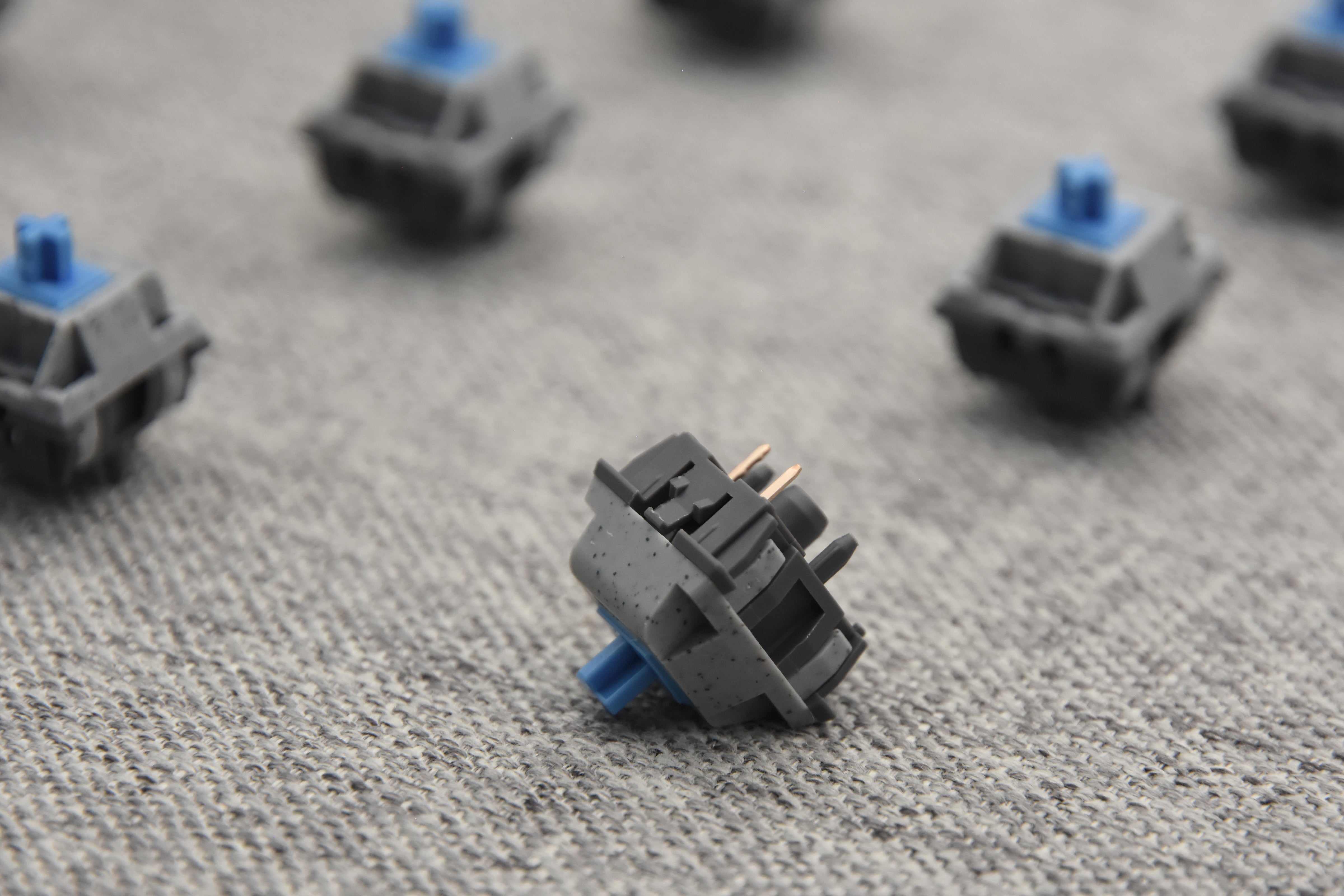

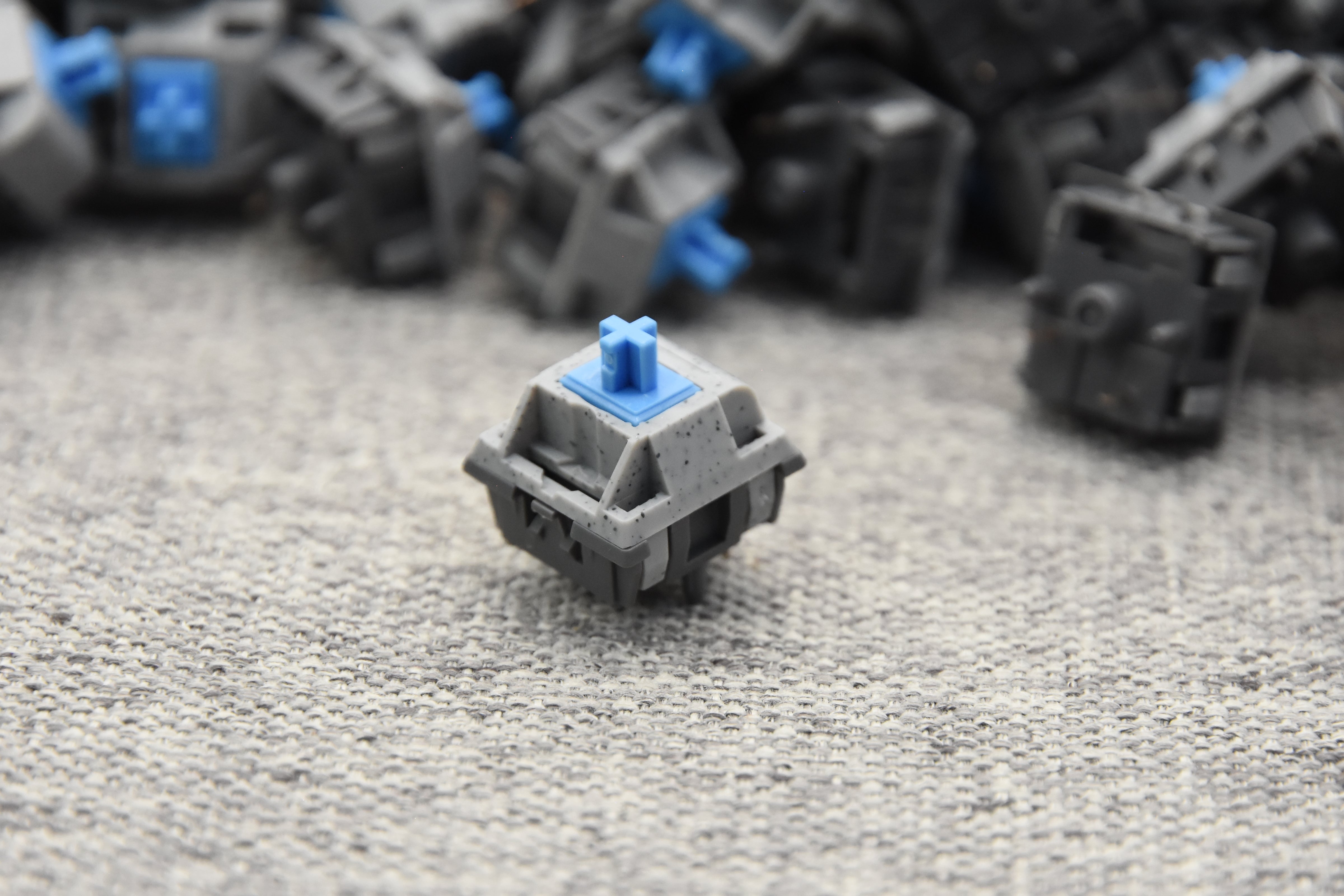

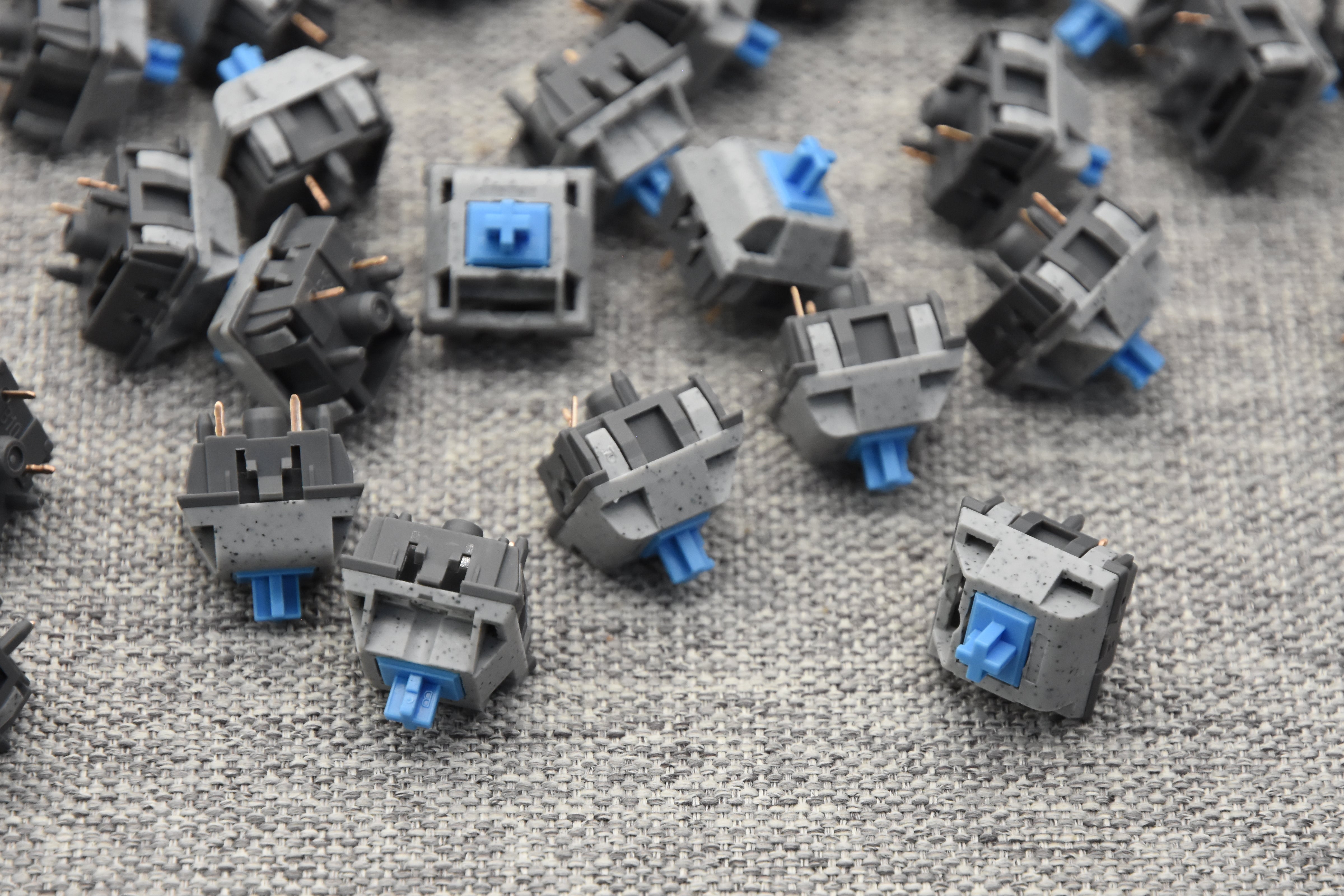

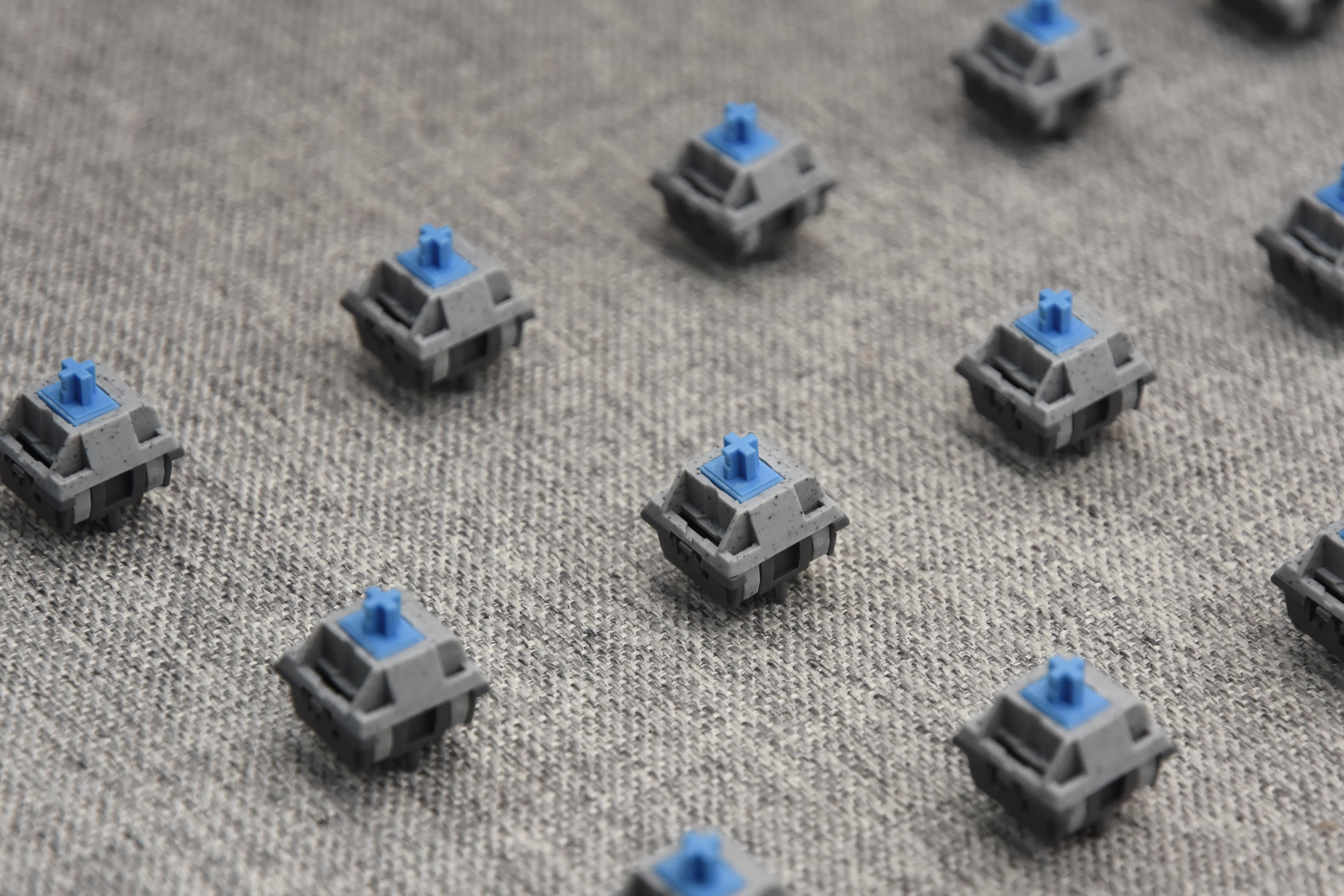

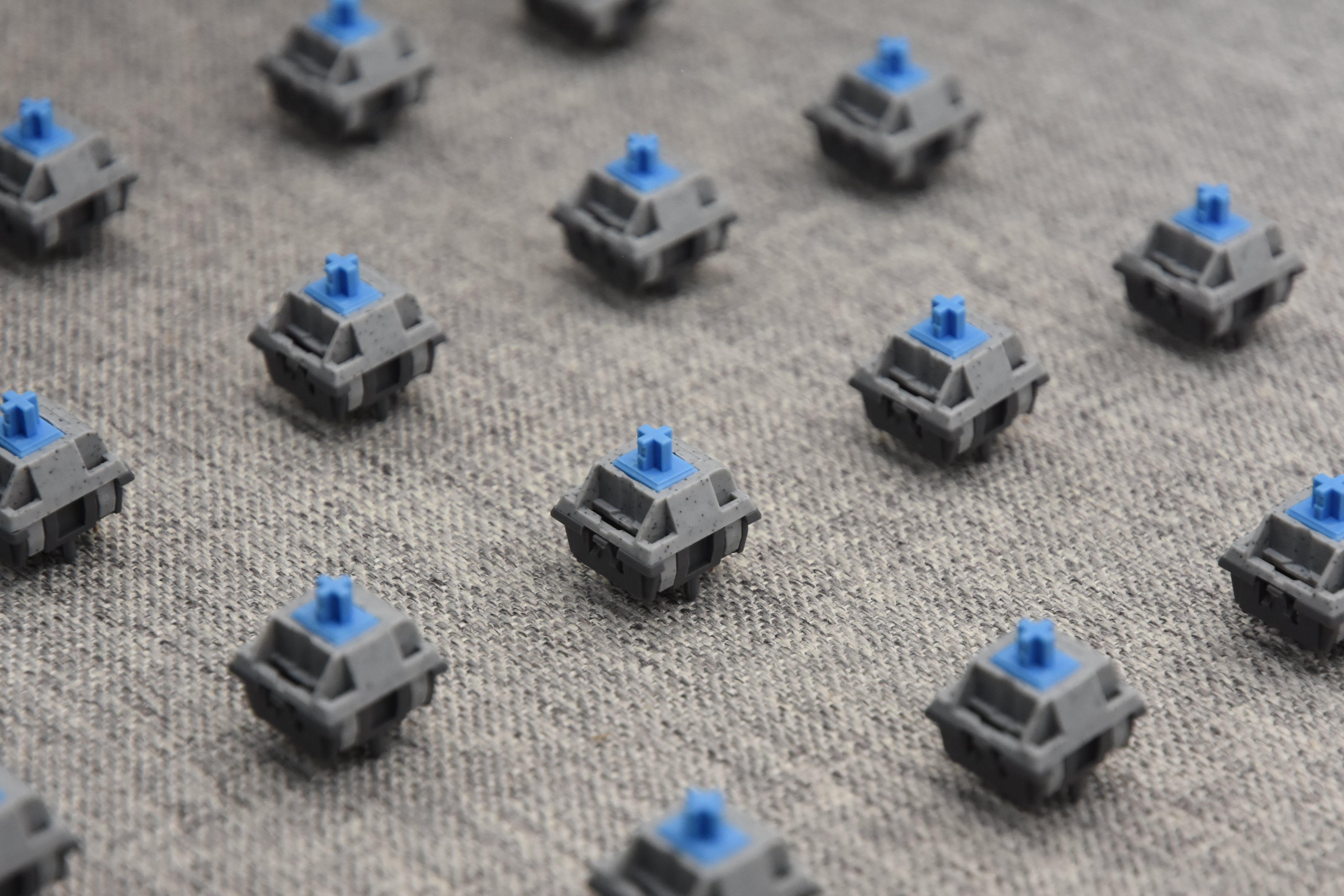

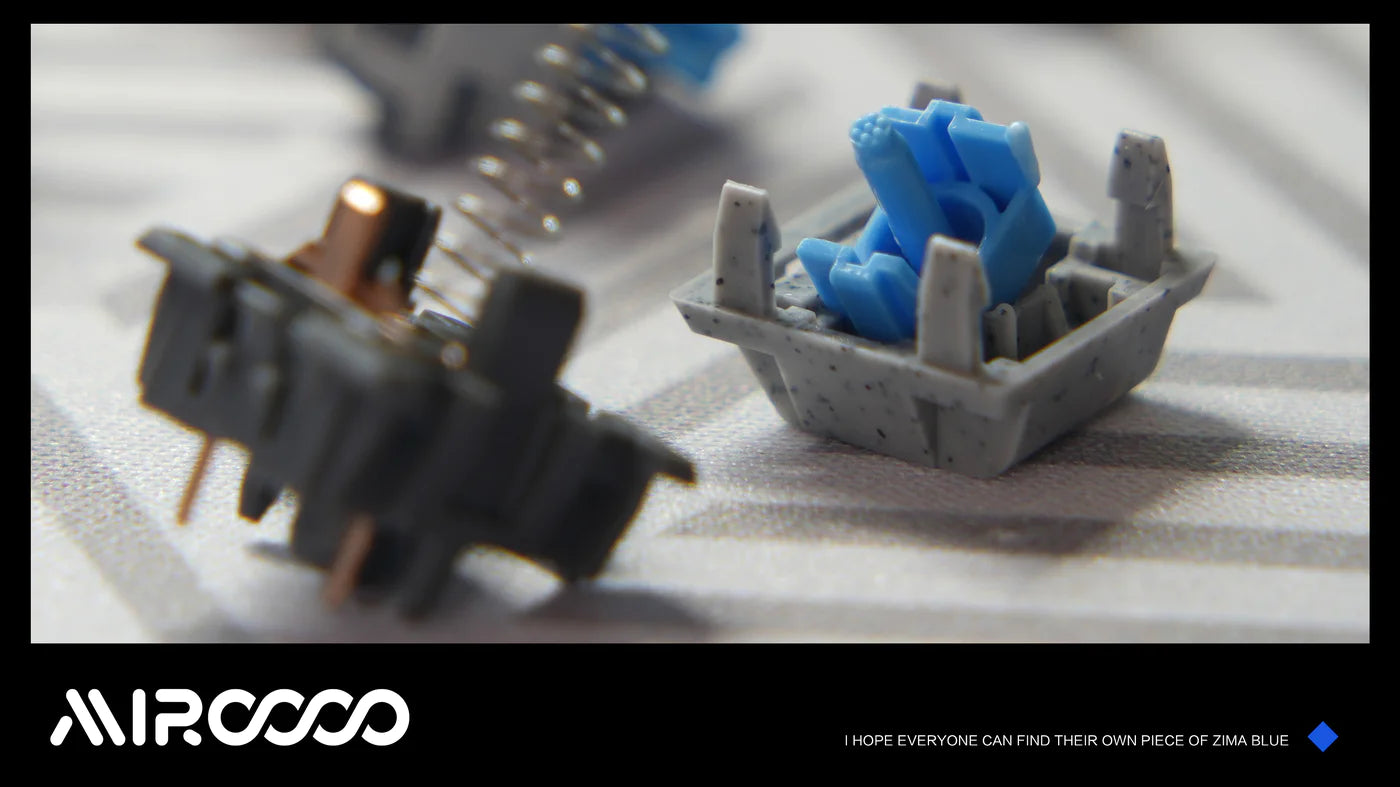

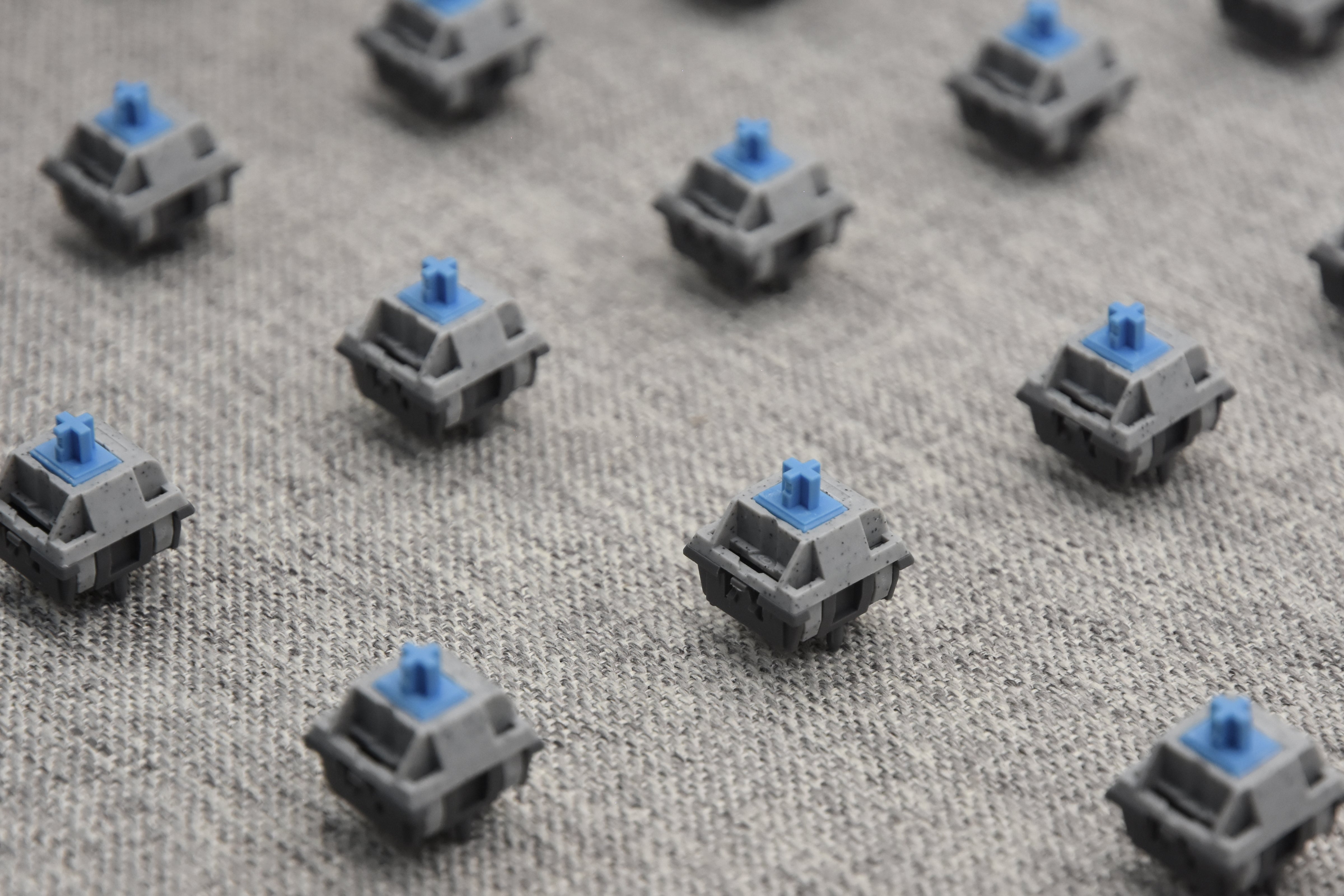

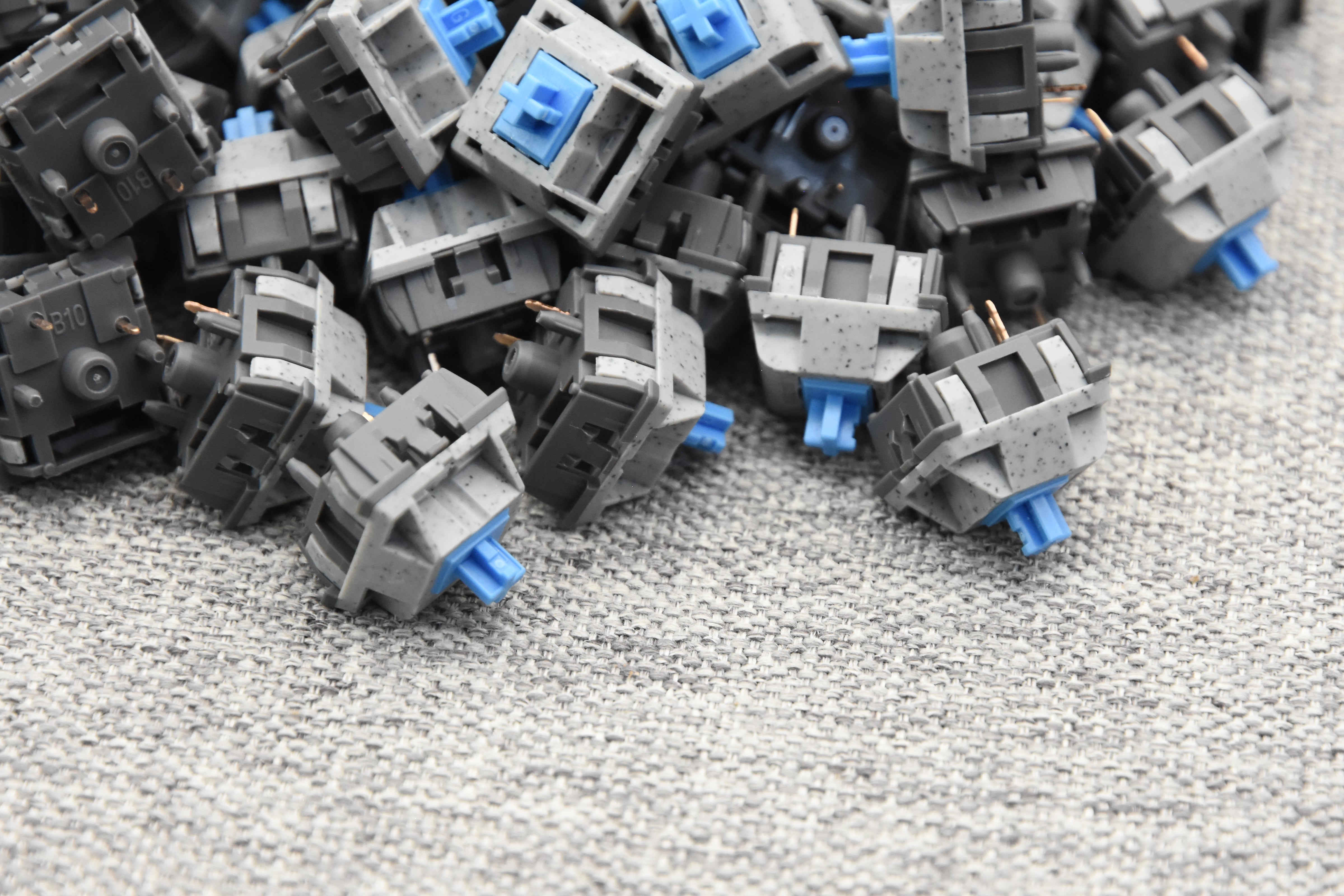

Keygeek M1

Keygeek Mold

通常プロファイルリニア5

スイッチ概要

Keygeek M1 switch is another unique addition to the Keygeek linear switch family. The reason is that M1 is manufactured using Keygeek's new stem mold, which consists of 7 smaller spheres on the stem tip. Comparing it to other classic stem tip designs that Keygeek has such as waffle stem tip (Y2 switch) or spherical stem tip (Y3 switch), the 7 spheres stem tip comes with a firmer and more solid bottom out feel. Sound wise, the 7 spheres stem tip creates a loud and thocky sound profile for the M1 switches, which is also quite different from the spherical stem tip and waffle stem tip which are designed for a quieter and deeper bottom sound. Stem material: L4 Strengthened POM (7 Spheres stem tip) Bottom Housing: N2 (Nylon with 20% fiberglass added)

最終更新日: 2025年10月11日
物理特性
作動荷重45±5
底打ち力53g
プリトラベル2.0mm
総ストローク3.6
ステム材質L4 Strengthened POM (7 Spheres stem tip)
工場潤滑済みはい
スプリング18mm single-stage spring Japanese wire Factory Lubed
モールドNew stem mold Stem material
プロファイル情報
プロファイル通常プロファイル
タイプリニア
サイレントいいえ
ピン数5
販売サイト情報

unikeys

562 JPY
数量:10
unknown
最終更新: 10/11/2025
Force Travel diagram
